Other Customizable Shaped LCD
01
Other customizable shaped LCD LED products full HD resolution
Parameter
Model |
ISOT236-CBU03 |
Color |
White with LED Backlight |
LED Lights Location |
Edge design |

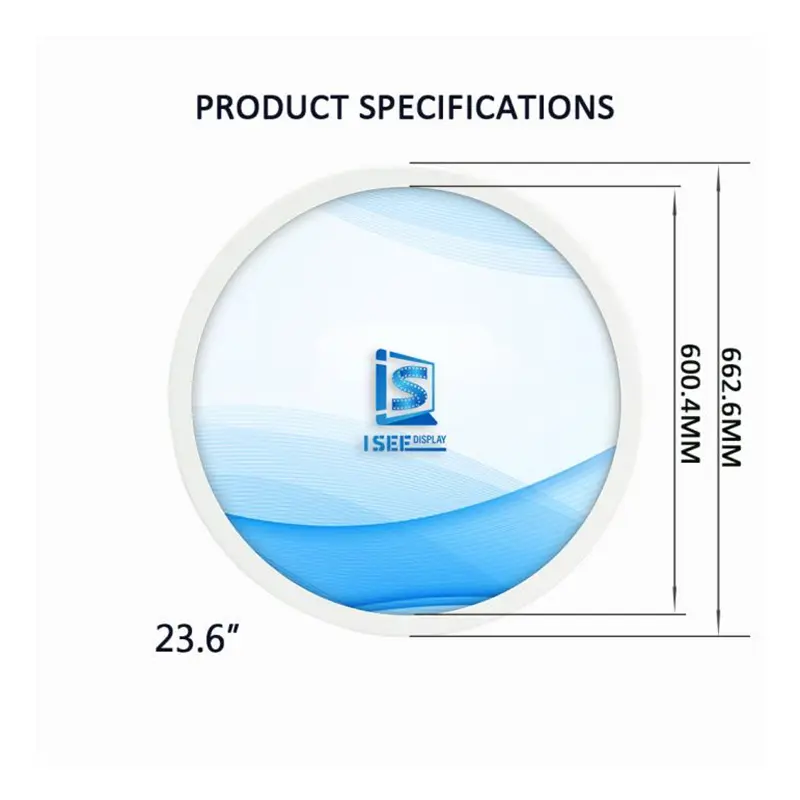

Active Display Area |
599.42mm(H)×599.42mm(V) |
Diagonal |
23.6" |
Aspect Ratio |
16:9 |
Dimensions |
Outline dimension: 690.0mm × 690.0mm × 55.6mm For other dimensions, please refer to the engineering drawing |
Native Resolution |
1280(RGB)×1280 |
Number of Colors |
16.7M |
Touch Technology |
PCAP (Projected Capacitive) - up to 10 touches |
Brightness (typical) |
LCD Panel: 1500 nits; TouchPro PCAP: 1290 nits |
Response (typical) |
14 ms |
Viewing Angle |
89/89/89/89 (Typ.)(CR≥10) |
Contrast Ratio |
1000:1 |
On-Screen Display |
Accessible through switches on the unit’s tethered OSD Control box. Controls: Menu, Up, Down, Select, Power Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color, Temperature, OSD Timeout OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Priority, Information, Touch On Sleep Mode, Touch Through Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese Lockouts: OSD, Power |
Video |
Analog VGA on Female DB-15 connector DVI-D digital signal, supporting single link and double link HDMI V1.3 Type A receptacle for HDMI input Input Video Horizontal Sync frequency range: 30 – 82KHz Input Video Vertical Sync (frame rate) frequency range: 50-75Hz |
Power |
External DC - power adapter Monitor input power signal specifications: 12VDC +/- 5% Adapter output power connector: DC barrel plug (2.1mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 9.5mm (+/- 0.3mm) barrel length) ,Power adapter length 1.8m (+/- 0.1m) |
Power Consumption |
ON (monitor + power brick): 100W SLEEP (monitor + power brick): 1.5W OFF (monitor + power brick): 0.5W |

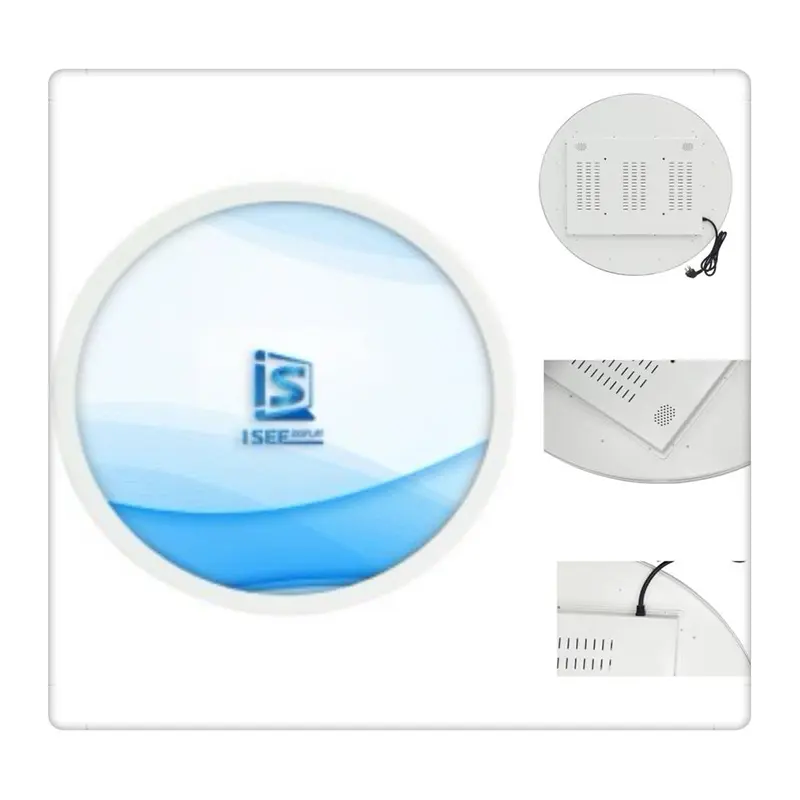

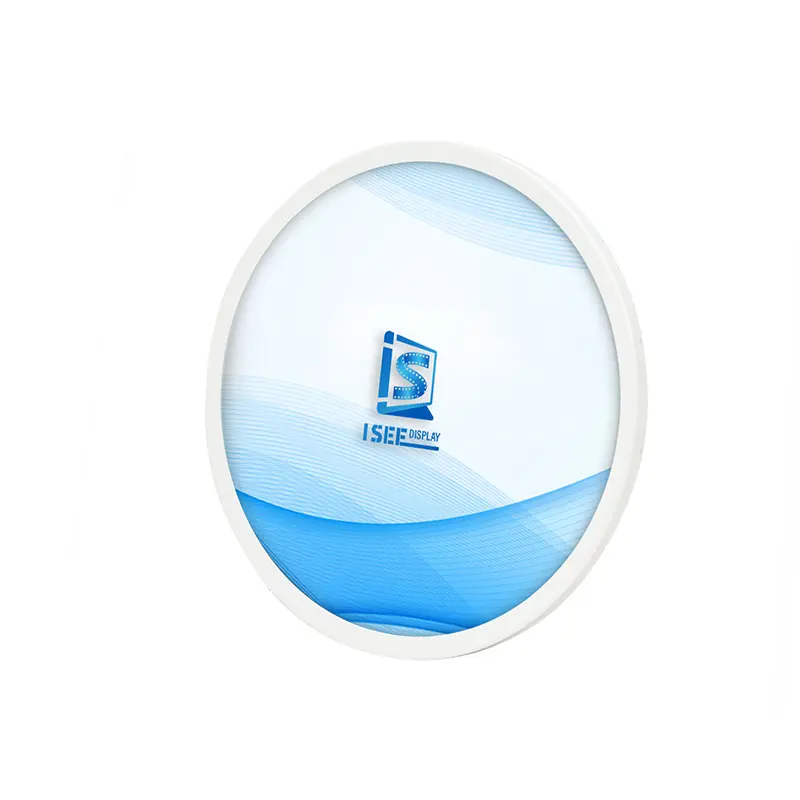

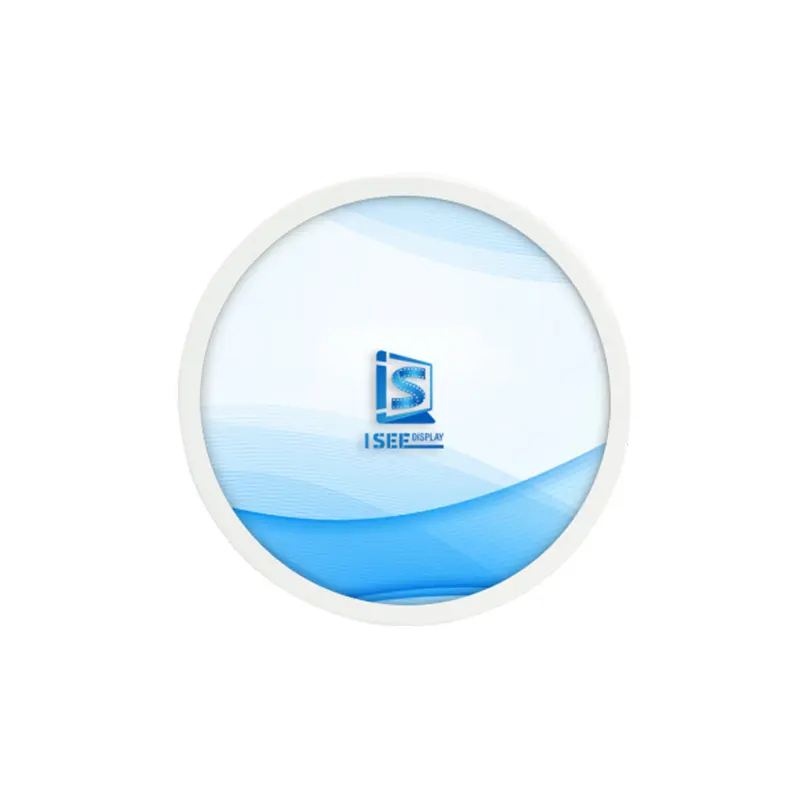

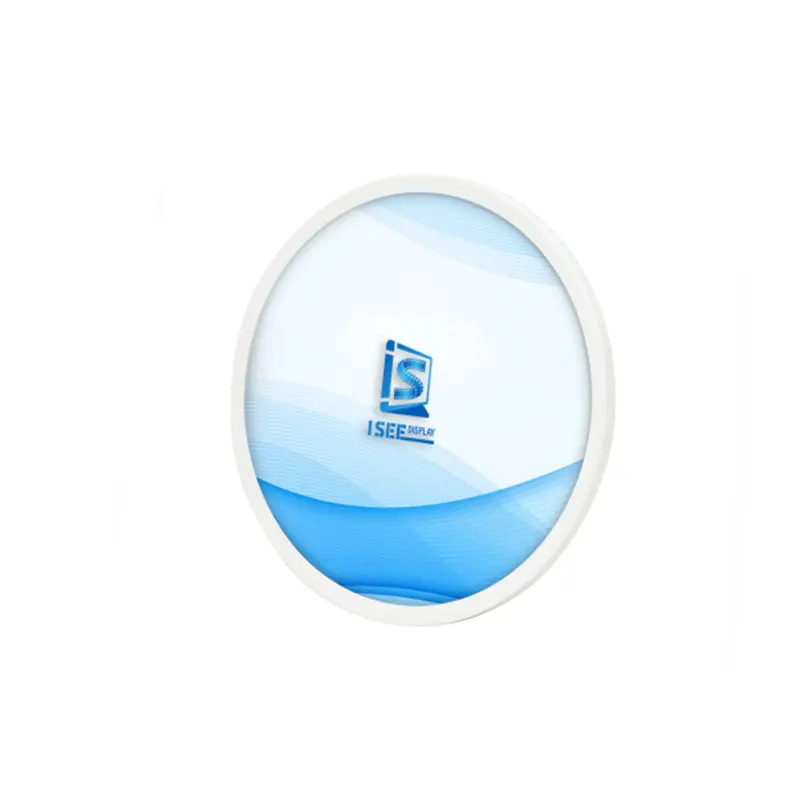

The23.6" circular LED-Framed monitor is a true eye-catcher designed to grab attention in any environment with its unique round form factor - perfect for digital signage applications, gaming machines, or anywhere you want to showcase content in an engaging and memorable way.
Utilizing ISEE's PCAP multi-touch technology, it provides a responsive touch experience for interacting with content using intuitive gestures. Built with an industrial-grade LCD panel offering a crisp full HD resolution of 1280x1280, vibrant colors and clear imagery are optimized for extended commercial/industrial.
operation. Setting up this innovative circular multi-touch display is hassle-free with true plug-and-play capability requiring no special touch drivers, saving valuable time and effort during installation and integration.
Display Optimization
Language |
Multi-language |
|
Media player |
Image |
JPBM/PEG/JPG/GIF etc. |
Audio |
MP3/WMA/AAC etc. |
|
Video |
RM RMVB MKV MOV M4V MPG |
|
Interface |
RJ45 |
RJ45*1 |
HDMI |
HDMI*1 |
|
USB |
USB*1 |
|
Power plug |
DC input |
|
Accessory |
Warranty Card*1,User manual*1,Remote Control,Power Cord*1,WIFI |
|
Touch Interaction Optimization
☑ Low Latency Touch Response: Ensure the 10-point infrared touch control has minimal latency for a smooth and responsive experience, especially when interacting with 3D elements.
☑ Gesture Recognition: Enhance gesture recognition for both touch and voice interactions, allowing users to manipulate 3D objects intuitively (e.g., pinch-to-zoom, rotate, or swipe).
☑ Haptic Feedback: Integrate haptic feedback to provide tactile responses when interacting with 3D elements, enhancing the sense of touch and realism.
Sizes
22",24",27",32"(support large size customization)
☑ Android 13.0, octa-core CPU processor
☑ built-in camera, capacitive touch, support HDMI input, wireless screen transfer,
☑ support 1920*1080 resolution (some sizes can be selected 4K)
☑ screen surface HD tempered glass, Mohs level 7 hardness, safe and reliable.
☑ the whole machine built-in high reliability lithium battery, long life, the maximum brightness of online video playback 5H,
Support wireless screen projection
Small screen to big screen.
Mobile phones,tablets,computers 5G HD with the same screen, office demonstrationEasy and convenientremote operation.
All in one machine
Multi-machine integration.
Set a variety ofscenarios mass application,
value experience, easy to get it done!
Fitness training Burn my calories
Whether it's a live workout or a yoga class, it's easy to handleWhere are the gyms.

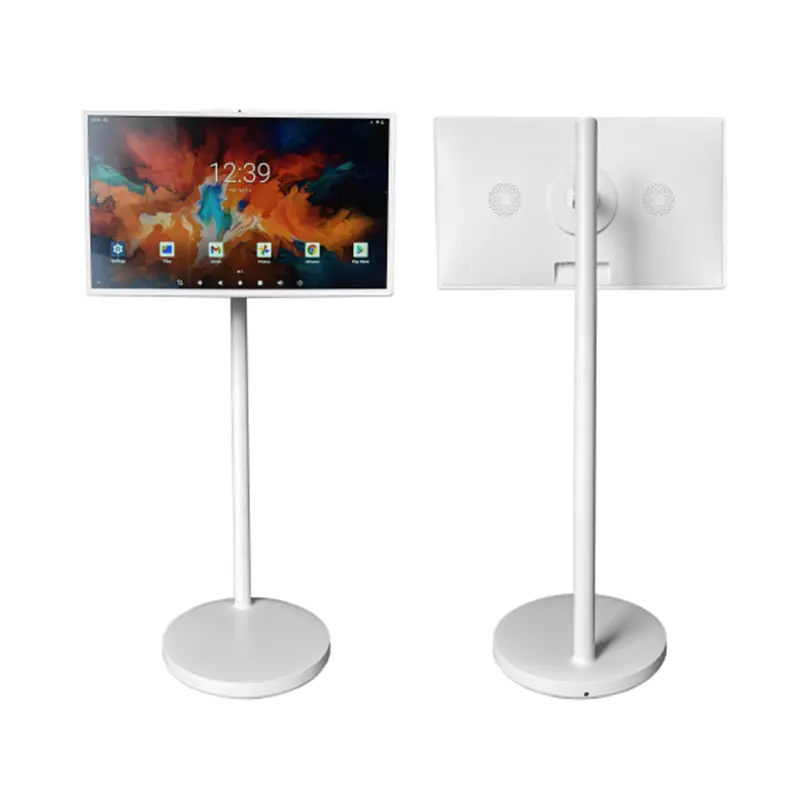

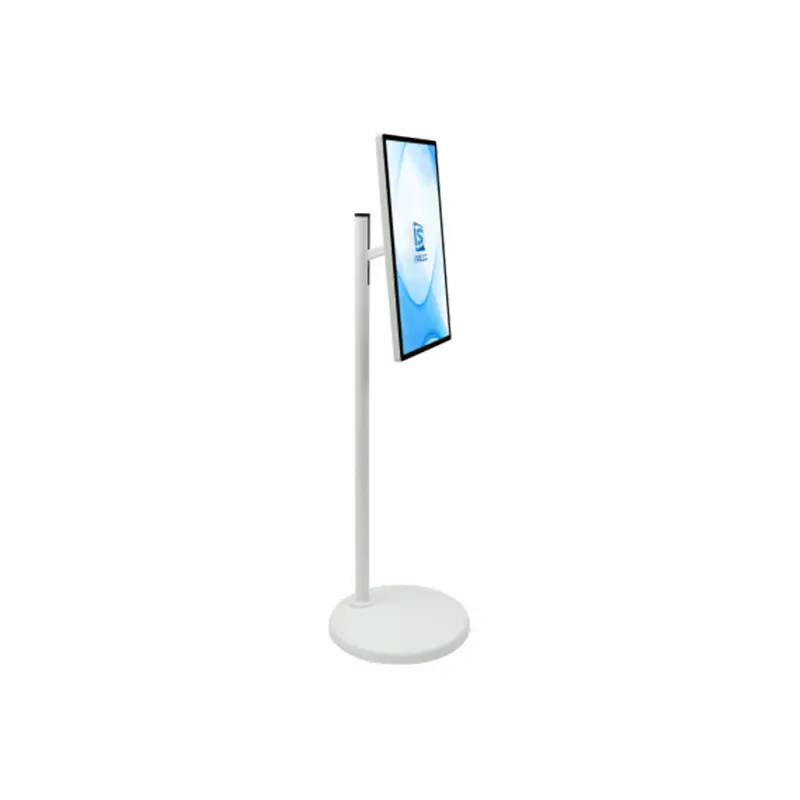

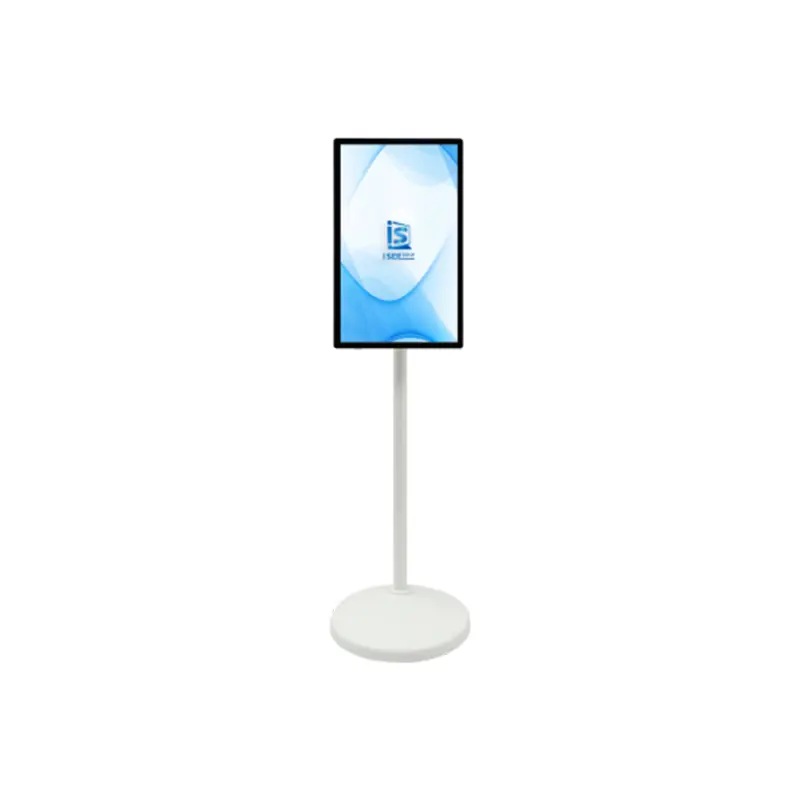

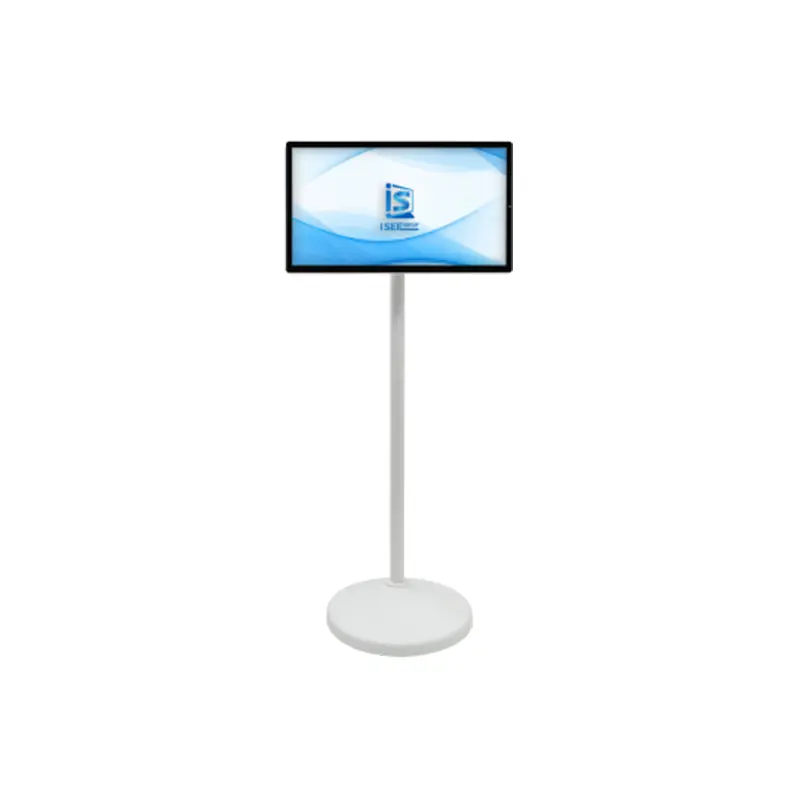

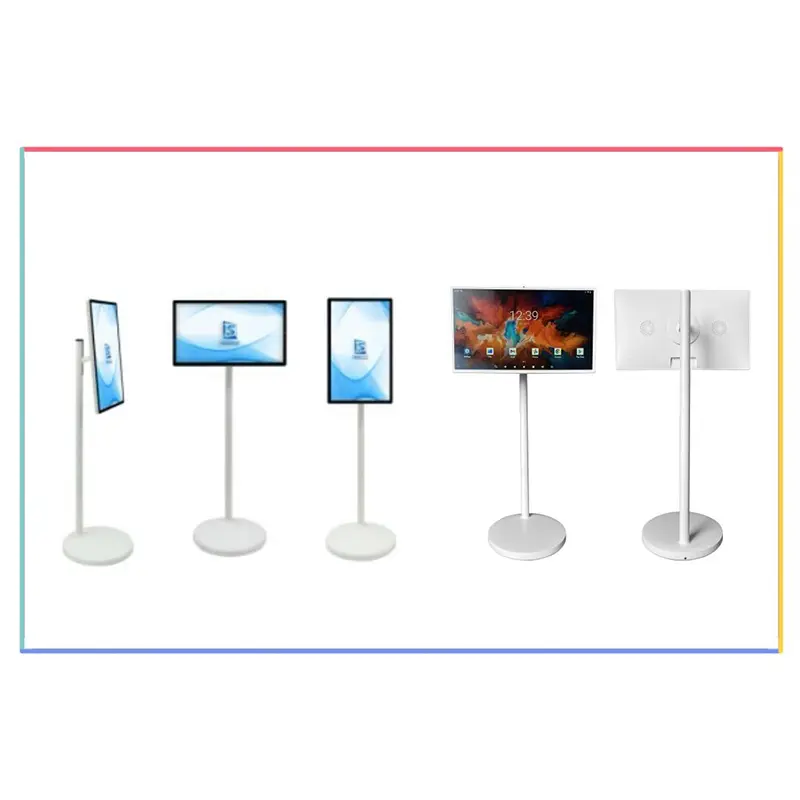

Rotate, tilt, lift
There's always an Angle for you.
Equipped with multi-angle adjustable mobile lifting bracket, no matter where you areCan give you a super satisfying and comfortable viewing.
Experience.
Aiintelligent voice interaction
Speak into the remote control, the heart screen voice assistant can controlPlay,return and other functions ofoperation,convenient and fast.
Ultra HD 4K eye shield
The ultra HD 4K fitted eye protection screen.
provides a more delicate picture quality.
performance, and up to 400% pixelimprovement.
compared to the ordinary 1080 screen.
New IPS touch screen
IPS HD screen, ten touch, no sensory delay,
writing and painting at everything, inspiration at hand.
Novel design
Simple not simple material.
Ultra-simple design, delicate and micro-frosted material, delicate and comfortable to hold.
