LED Strip Light Management Solutions
2025-05-07

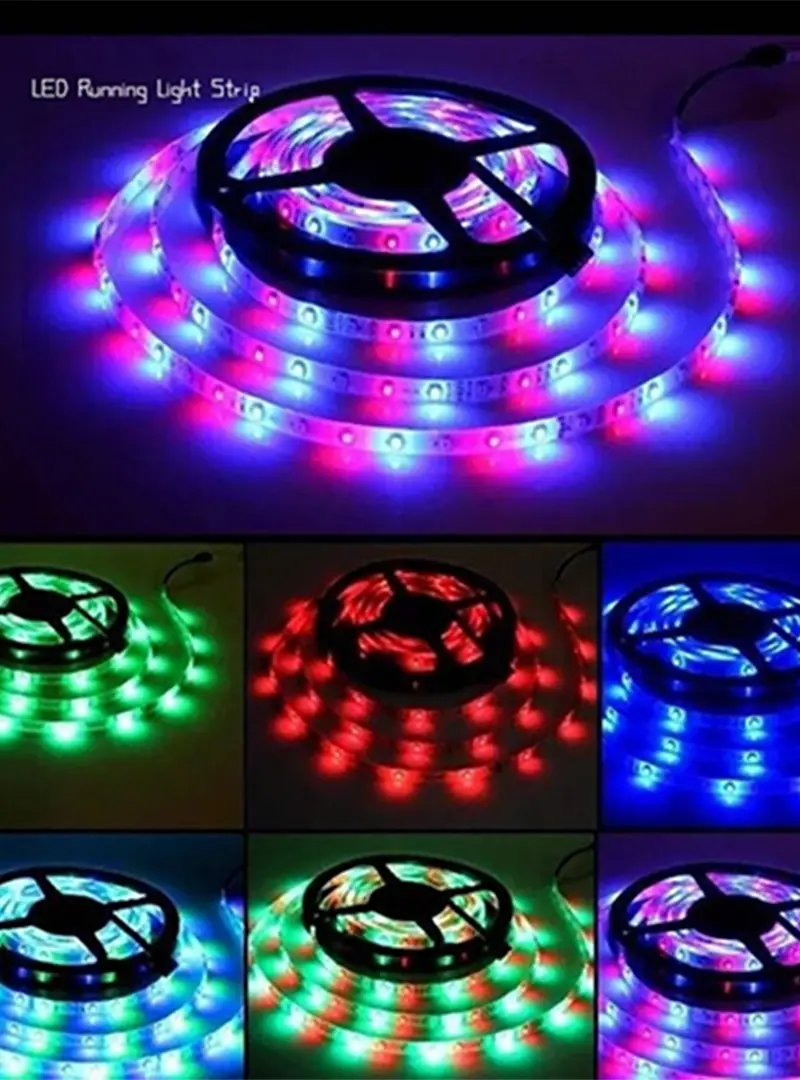

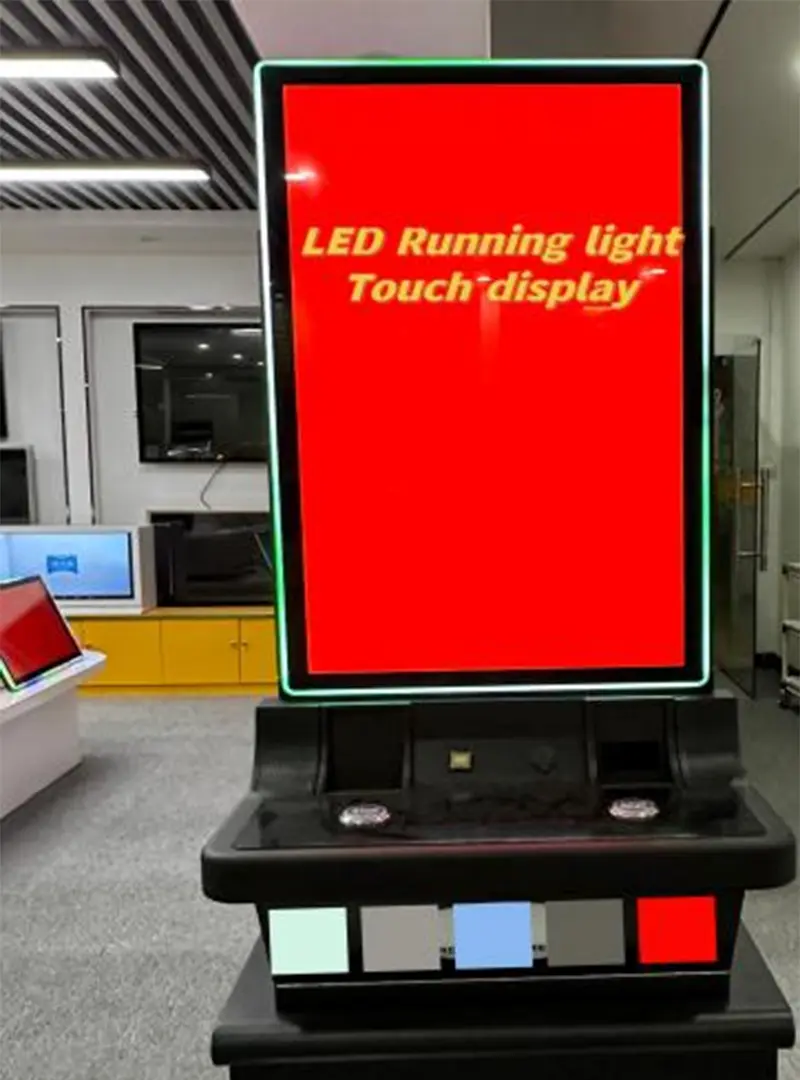

When multiple LED strip lights are installed on a touchscreen gaming cabinet, or when LED strip lights across multiple touchscreen gaming machines need to achieve sequential lighting effects where LED beads light up one by one and turn off gradually, creating dynamic running-horse-like visual effects for decoration that synchronize with musical rhythms to deliver superb audiovisual experiences - this management task can be accomplished by our independently developed and manufactured programmable LED Strip Light Controller.

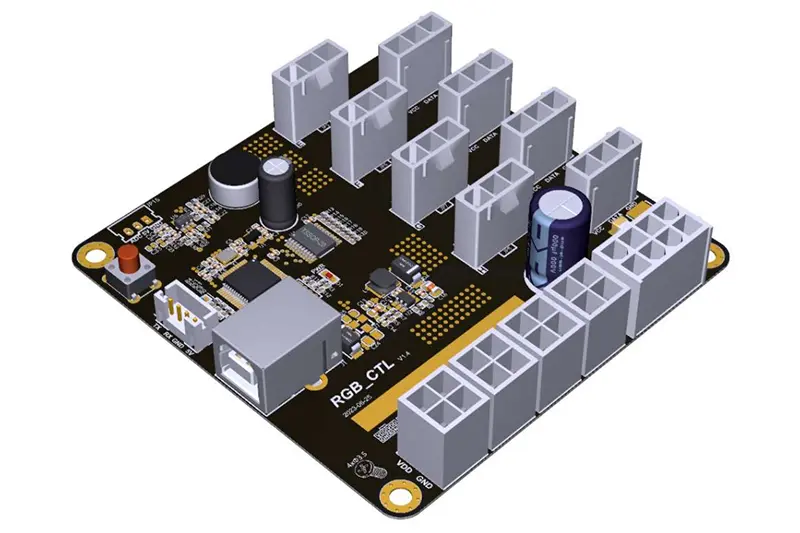

RGB_CTL V1.4
Brief Introductio
RGB_CTL V1.4 is a control board based on WS281x light strips, which can simultaneously control up to 8 different light strips. The 8 light strips are independently controlled and do not interfere with each other.
Features and function
● Support up to 8 light strips for independent control;
● Each light strip can support up to 1024 lights;
● Support USB control, which can directly control 8 light strip modes through
Windows upper computer software；
● Supporting serial port control, each light on each light strip can be controlled
through serial port commands;
● The USB port comes with a virtual serial device, which can send serial instructions through software such as a serial assistant ;
● On board Electret microphone, supporting rhythm light function;
● Industrial grade standard design, supporting long-term use at -40~+85℃;
● Equipped with a fuse to prevent excessive current from burning out；
Specification parameters
limit parameter
Parameters | Min | Max | Notes |
supply voltage | 4.75 | 40 | Permanently burned modules exceeding 40V |
Power supply current | 一 | 40 | Exceeding 40A U ill burn out the fuse |
operation temperature | -40 | 85 | Industrial grade |
Operation parameters
Parameters | Min | Typical | Max | Notes |
working voltage | 5 | 12 | 24 | Supports 5V,12V,and 24V light strips |
Serial communication level |
| 3.3V |
| There is a risk of burning when using a 5V level |
operation temperature | -40 |
| 85 |
|
Sound sensitivity | 一 | -50 |
|
With this powerful control device, we can systematically manage and control over 1,000 LED beads to achieve dynamic lighting effects including flashing, chasing, color jumping, clockwise marquee, counter-clockwise marquee, single-color marquee, and multi-color transitions - fully demonstrating its intelligent and scientific control capabilities.
This cost-effective yet feature-rich LED controller is also compatible with various LED applications such as full-color illuminated letter strings, RGB modules, flexible/rigid light bars, and guardrail tubes. It is widely used in public spaces including arcade games, KTV venues, cinemas, shopping malls, supermarkets, train stations, and airports - effectively capturing attention and enhancing advertising impact through cyclic text, image, or animation displays.
