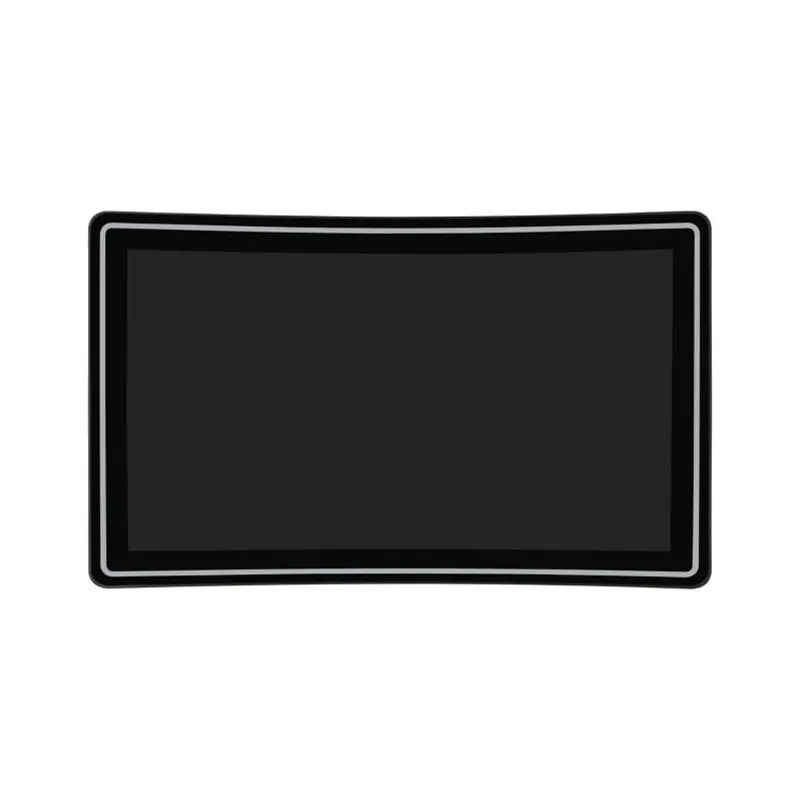

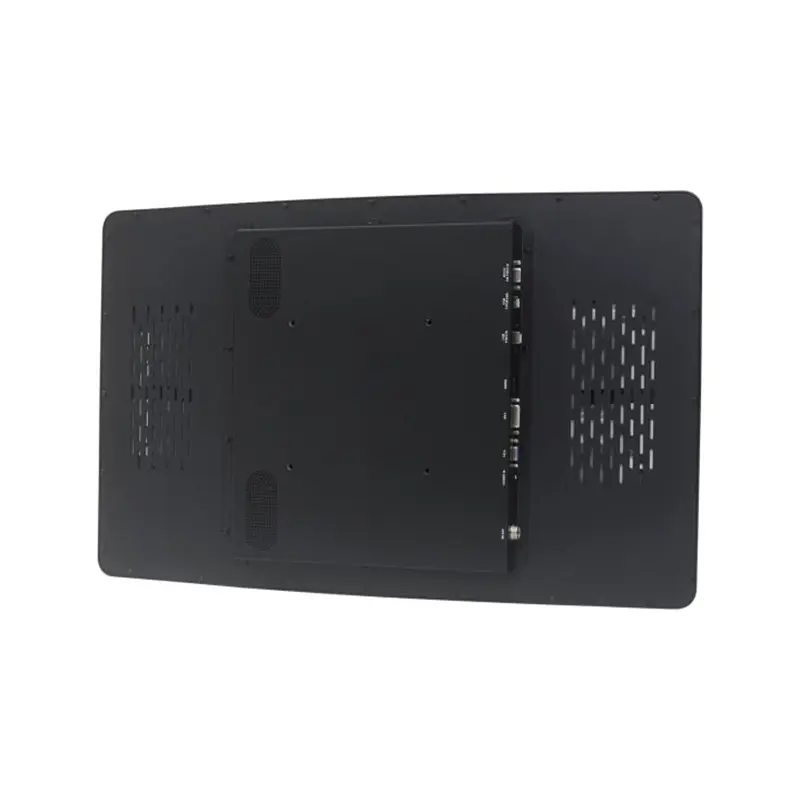

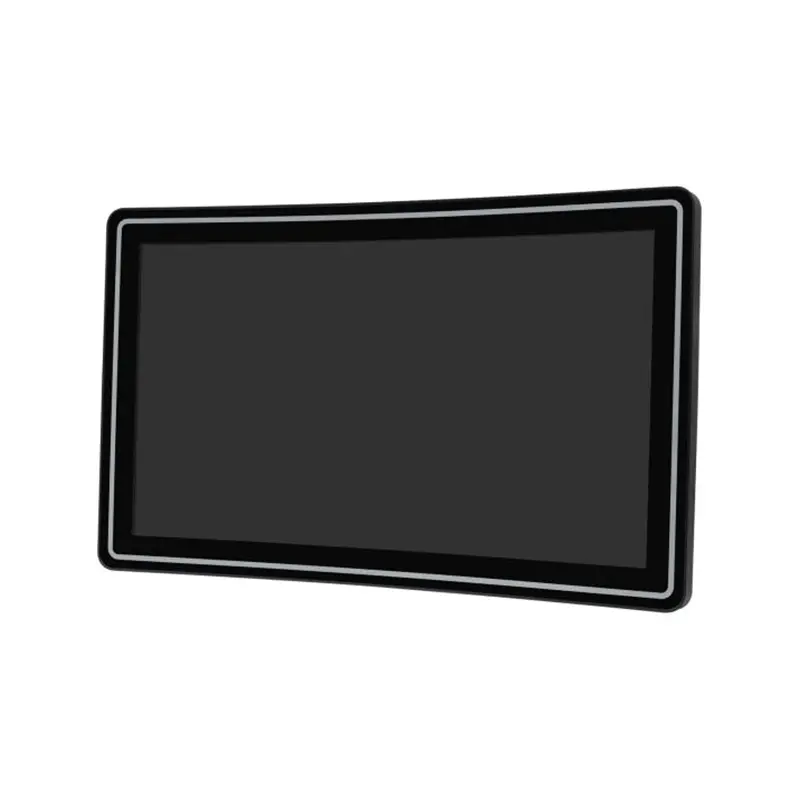

ISOT320-CLTR 32" C-Type Curved Touch Screen Monitor
Product Description
ISEE DISPLAY’s ISOT320-CLTR represents a premium curved touchscreen display engineered to deliver a superior visual experience. Highlighted by a 1500R golden curvature and an exclusive C-shaped design, it ensures immersive viewing across gaming, retail, and entertainment environments. This display seamlessly integrates advanced PCAP multi-touch technology with LED strip lighting, thereby amplifying interactivity and user engagement.
Constructed with industrial-grade IP65 and IK-07 ratings, the ISOT320-CLTR guarantees robust durability even in rigorous operational settings. It offers high-resolution 2K/4K output and extensive system compatibility, while supporting customization of both appearance and interface to address specific requirements. Combining high performance with hassle-free integration, it features straightforward installation and mounting capabilities for seamless deployment.
Key Features
Parameter
Product Name |
32" Curved Monitor |
Model |
ISOT320-CLTR |
Display Technology |
Active Matrix TFT-LCD with LED Backlight |
Active Display Area |
698.4(W)×392.85(H) mm |
Diagonal |
32" |
Aspect Ratio |
16:9 |
Dimensions |
Outline dimension: 773.5mm x 468.2mm x 65.0mm |
Native Resolution |
1920(RGB)×1080, FHD |
Number of Colors |
16.7M, 72% NTSC |
Touch Technology |
PCAP (Projected Capacitive) - up to 10 touches |
Brightness (typical) |
LCD Panel: 285 nits; TouchPro PCAP: 245.6 nits |
Response (typical) |
6.5 (Typ.)(Tr/Td) ms |
Viewing Angle |
89/89/89/89 (Typ.)(CR≥10) |
Contrast Ratio |
4000:1 |
On-Screen Display |
Accessible through switches on the unit’s tethered OSD Control box. |
Video |
Analog VGA on Female DB-15 connector |
Power |
Input connector (power): IEC 60320-C14; Input signal specifications (power): 100-240VAC 50/60Hz |
Power Consumption |
ON (monitor + power brick): 45.5W |
Temperature |
Operating: 0 °C to 50 °C (32 °F to 122 °F); Storage: -20 °C to 60 °C (-4 °F to 140 °F) |
Humidity |
Operating: 20% to 80%; Storage: 10% to 95% |
Dust and waterproof grade |
Front grade IP65 |
Impact resistance grade |
IK-07 |
Weight |
Unpackaged: 15 kg; Packaged: 22.5 kg |
Shipping Dimensions |
950mm x 200mm x 640mm(Single package: Length x Width x Height) |
Mounting Options |
Four-hole 200x200mm VESA mount for M8 screws |
Warranty |
1 year standard |
MTBF |
30,000 hours demonstrated |
Agency Approvals |
FCC, CE |
What’s in the Box |
HDMI Cable or VGA Cable optional, Touch USB Cable, Mount Brackets, Screws, Power adapter, Power Cable |
Superior quality
ISEE HD Display Monitor offers 2K/4K resolution with a 16:9/21:9 landscape or 9:16 portrait aspect ratio. Featuring a high refresh rate, it ensures clear, detailed visuals with every frame. Perfect for dynamic content, this monitor guarantees exceptional clarity and smooth performance in professional environments.
Demand customization

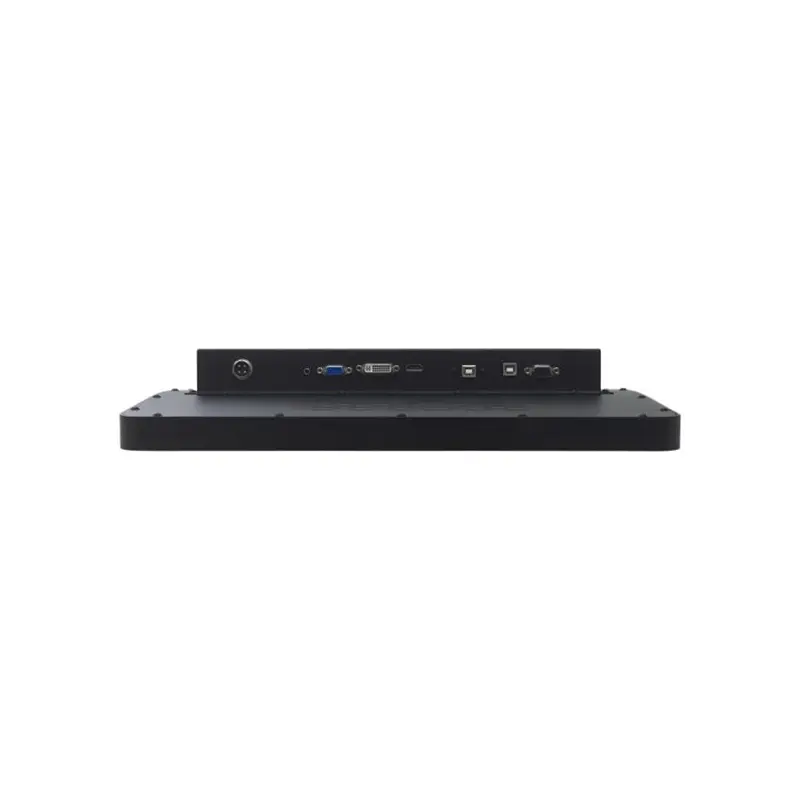

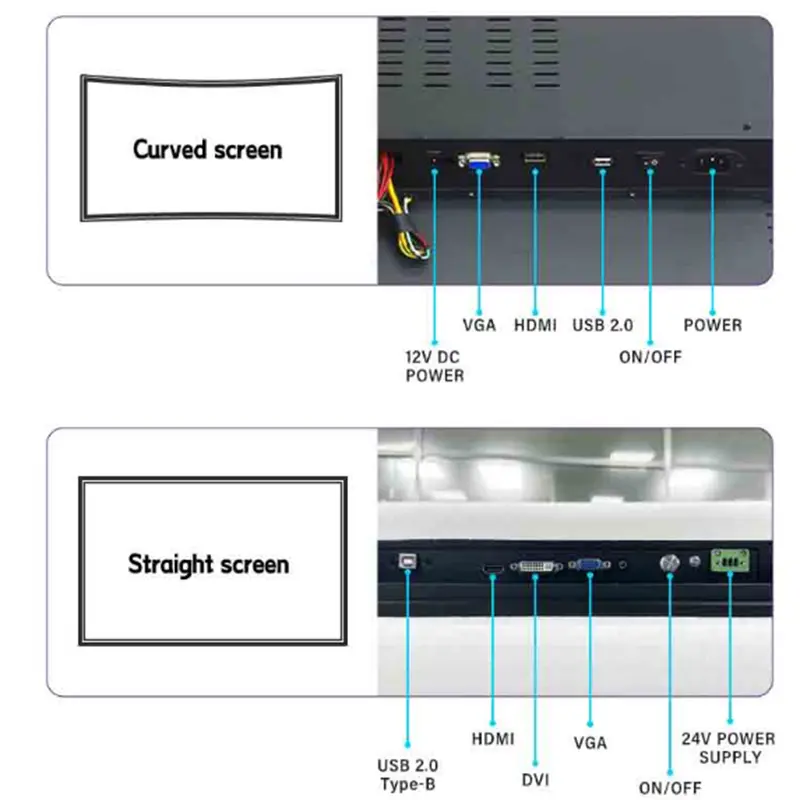

The ISEE Curved Monitor supports multiple interfaces, including HDMI, VGA, USB, DVI, DP, and RS232, offering flexible customization options for seamless integration into diverse systems and environments.

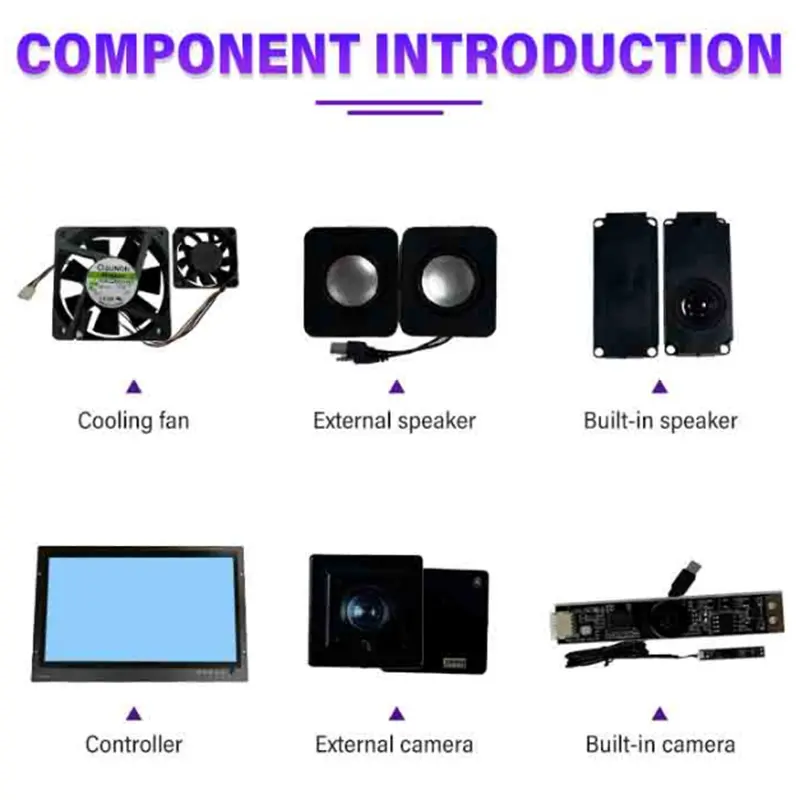

Customizable components
Customizable components - unmatched performance, Customized for You
Cooling Fan: Keeps your display cool, ensuring uninterrupted performance.
Audio Excellence: Choose between built-in or external speakers for rich, clear sound.
Versatile Cameras: Built-in and external cameras for seamless video communication.
Easy Control: A responsive controller for smooth, intuitive user experience.
Tailor your experience with ISEE Curved Monitor—where innovation meets customization for the ultimate professional display solution.

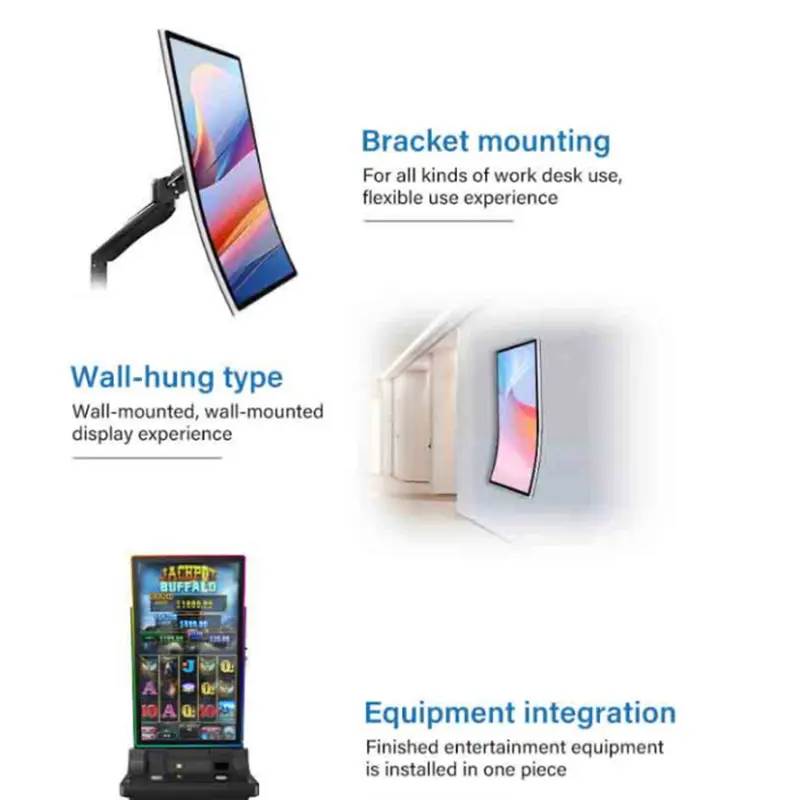

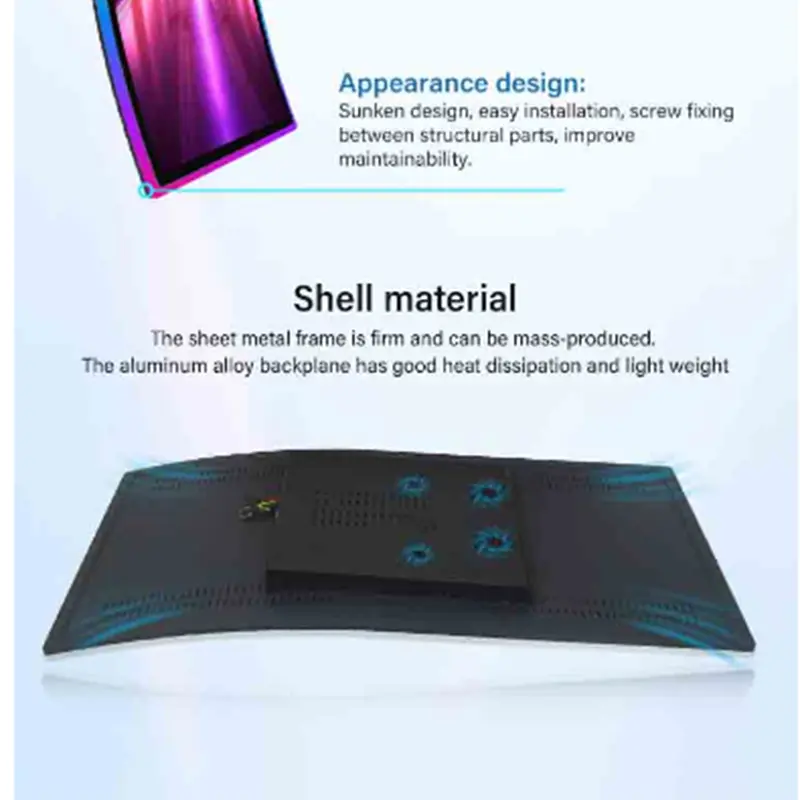

Industrial, Ultra-thin, and Effortless to Install
Engineered for durability with a sleek, lightweight industrial design, the ISEE Curved Monitor adapts seamlessly to any environment.
Bracket-Mounted: Flexible, easy installation for all types of work desks, offering a tailored experience.
Wall-Mounted: Save space while maintaining a stylish, modern look in any setting.
Equipment Integration: Effortlessly integrates into finished entertainment setups, elevating your space with minimal effort.
With its durable, lightweight design and versatile mounting options, the ISEE Curved Monitor delivers an unmatched, eye-catching experience that fits perfectly in any scenario. Simplify your setup, elevate your space, and enjoy a display solution that adapts to you!
Secure Packaging & Reliable Global Shipping
Your ISEE Curved Monitor is expertly packaged with precision, ensuring maximum protection throughout the shipping process.
Premium Packaging: Tailored to safeguard your product, ensuring it arrives in pristine condition.
Global Logistics Partnership: Collaborating with trusted international carriers for efficient, safe delivery.
Timely, Accurate Delivery: We guarantee punctual and accurate delivery to your business, no matter the location.
Experience worry-free shipping with ISEE—where reliability meets professionalism, ensuring your purchase arrives quickly, safely, and ready to perform.
