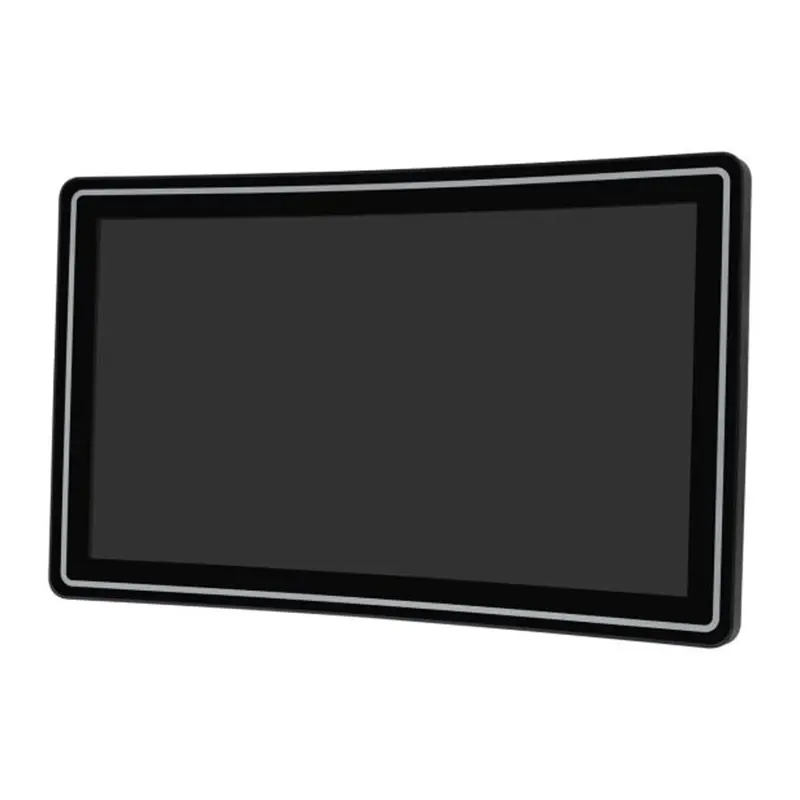

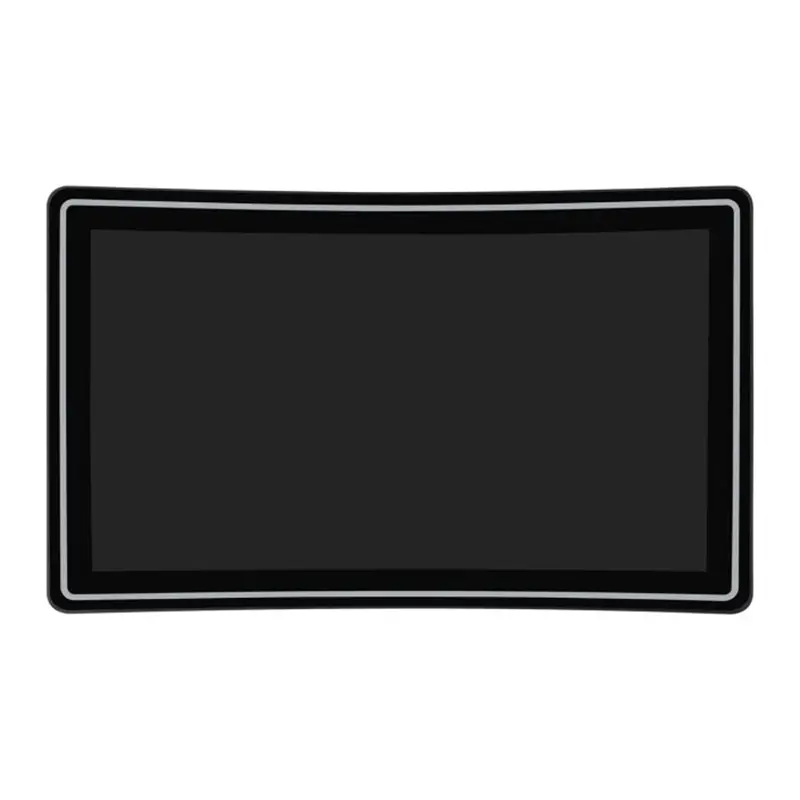

ISOT270-CLTR 27" C-Type Curved Touch Screen Monitor
ISEE DISPLAY’s ISOT270-CLTR is a premium curved touchscreen display designed to deliver an exceptional visual experience. Featuring a 1500R golden curvature and a unique C-shape design, it ensures immersive viewing in gaming, retail, and entertainment environments. The display integrates advanced PCAP multi-touch technology with LED strip lighting, enhancing interactivity and engagement. Built with industrial-grade IP65 and IK-07 ratings, it guarantees durability in demanding settings. Offering 2K/4K high resolution and broad system compatibility, the ISOT270-CLTR can be customized in appearance and interface to meet specific needs. Easy to install and mount, it combines performance with effortless integration.
Key Features
1. Curved shape with 1500R golden curvature for immersive visuals.
2. Integrated LED Strip Light for enhanced interactivity.
3. Industrial-grade IP65 and IK-07 protection for reliability.
4. 2K/4K high resolution for sharp and clear display.
5. Compatible with various systems for flexible use.
6. Customizable appearance and interface for tailored solutions.
7. Simple to install and mount, ensuring ease of use.
Parameter
Product Name |
27" Curved Monitor |
Model |
ISOT270-CLTR |
Display Technology |
Active Matrix TFT-LCD with LED Backlight |
Active Display Area |
597.888mm(H)×336.312mm(V) |
Diagonal |
27" |
Aspect Ratio |
16:9 |
Dimensions |
Outline dimension: 684.73mm x420.31mm x 86.94mm For other dimensions, please refer to the engineering drawing |
Native Resolution |
1920(RGB)×1080, FHD |
Number of Colors |
16.7M, 72% NTSC |
Touch Technology |
PCAP (Projected Capacitive) - up to 10 touches |
Brightness (typical) |
LCD Panel: 285 nits; TouchPro PCAP: 245.6 nits |
Response (typical) |
6.5 (Typ.)(Tr/Td) ms |
Viewing Angle |
89/89/89/89 (Typ.)(CR≥10) |
Contrast Ratio |
4000:1 |
On-Screen Display |
Accessible through switches on the unit’s tethered OSD Control box. Controls: Menu, Up, Down, Select, Power Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color, Temperature, OSD Timeout OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Priority, Information, Touch On Sleep Mode, Touch Through Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese Lockouts: OSD, Power |
Video |

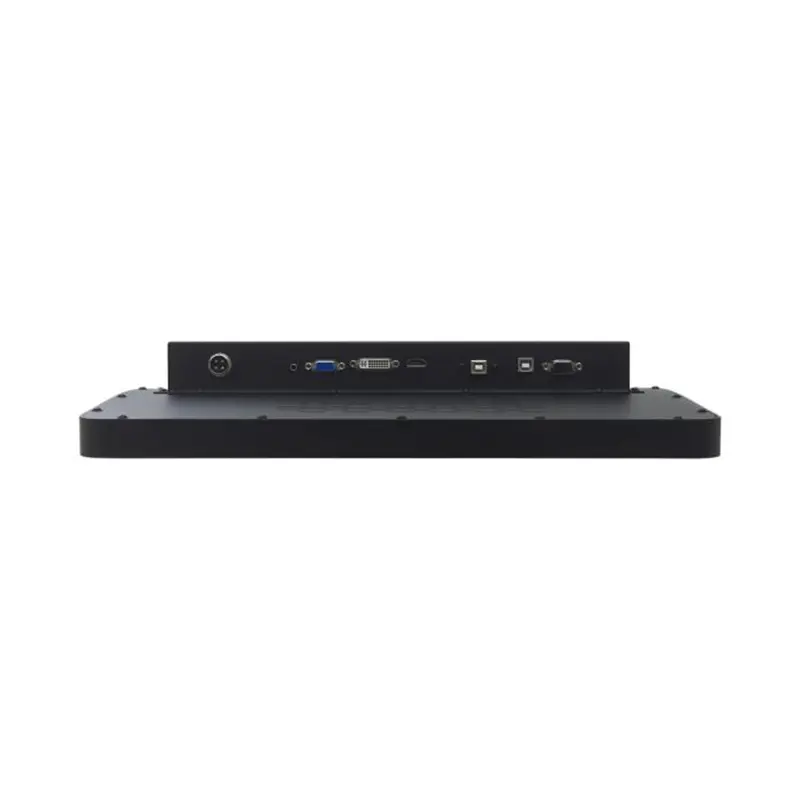

Analog VGA on Female DB-15 connector DVI-D digital signal, supporting single link and double link HDMI V1.3 Type A receptacle for HDMI input Input Video Horizontal Sync frequency range: 30 – 82KHz Input Video Vertical Sync (frame rate) frequency range: 50-75Hz |
Power |
External DC - power adapter Monitor input power signal specifications: 12VDC +/- 5% Adapter output power connector: DC barrel plug (2.1mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 9.5mm (+/- 0.3mm) barrel length) ,Power adapter length 1.8m (+/- 0.1m) |
Power Consumption |
ON (monitor + power brick): 37.37W SLEEP (monitor + power brick): 1.5W OFF (monitor + power brick): 0.5W |
Temperature |
Operating: 0 °C to 50 °C (32 °F to 122 °F); Storage: -20 °C to 60 °C (-4 °F to 140 °F) |
Humidity |
Operating: 20% to 80%; Storage: 10% to 95% |
Dust and waterproof grade |
Front grade IP65 |
Impact resistance grade |
IK-07 |
Weight |
Unpackaged: 9.75 kg; Packaged: 24.8 kg(Each package contains 2 pieces) |
Shipping Dimensions |
840mm x 260mm x 580mm(2 pieces package: Length x Width x Height) |
Mounting Options |
Four-hole 150x150mm VESA mount for M4 screws |
Warranty |
1 year standard |
MTBF |
30,000 hours demonstrated |
Agency Approvals |
FCC, CE |
What’s in the Box |
HDMI Cable or VGA Cable optional, Touch USB Cable, Mount Brackets, Screws, Power adapter, Power Cable |
Production process
The ISEE Curved Monitor combines advanced technology and durability for professional and industrial use. Its 1500R curvature reduces eye strain, enhancing visual comfort for extended use. The dustproof and waterproof design ensures reliability in harsh environments. Featuring LED dynamic lighting, 10-point capacitive touch, and optional 2K/4K resolution, it offers exceptional performance for interactive displays and multimedia applications. With energy efficiency and long-lasting durability, the ISEE Curved Monitor is a versatile, cost-effective solution for businesses and creative professionals seeking high-quality display performance.
Secure Packaging & Reliable Global Shipping
Your ISEE Curved Monitor is expertly packaged with precision, ensuring maximum protection throughout the shipping process.
Premium Packaging: Tailored to safeguard your product, ensuring it arrives in pristine condition.
Global Logistics Partnership: Collaborating with trusted international carriers for efficient, safe delivery.
Timely, Accurate Delivery: We guarantee punctual and accurate delivery to your business, no matter the location.
Experience worry-free shipping with ISEE—where reliability meets professionalism, ensuring your purchase arrives quickly, safely, and ready to perform.
ISEE DISPLAY—— Your Trusted Global Partner
At ISEE DISPLAY, we are proud to be a leading OEM/ODM factory with a focus on innovation and quality. We welcome your ideas and work closely with you to create customized solutions that meet your unique needs. Our team is dedicated to providing the best solutions, ensuring your complete satisfaction from concept to delivery.
Reliable Quality & Guarantee
We are golden suppliers on Alibaba with numerous certifications like CE and FCC, proving our commitment to international standards. Our products come with a one-year guarantee from the shipping date, and for added peace of mind, we offer the option to extend the warranty to two or three years at a minimal additional cost.
Flexible MOQ & Quick Delivery
We offer samples for evaluation with no MOQ on non-customized products, making it easy to test our quality before placing a larger order. For bulk orders, expect delivery within 10 days based on your quantity, while custom designs are shipped within 15 days.
Secure Payment & Global Shipping
We provide multiple secure payment methods, including wire transfers, credit cards, and PayPal. With door-to-door delivery and preferential rates via DHL, FedEx, and more, we ensure a smooth, fast, and reliable shipping experience.
