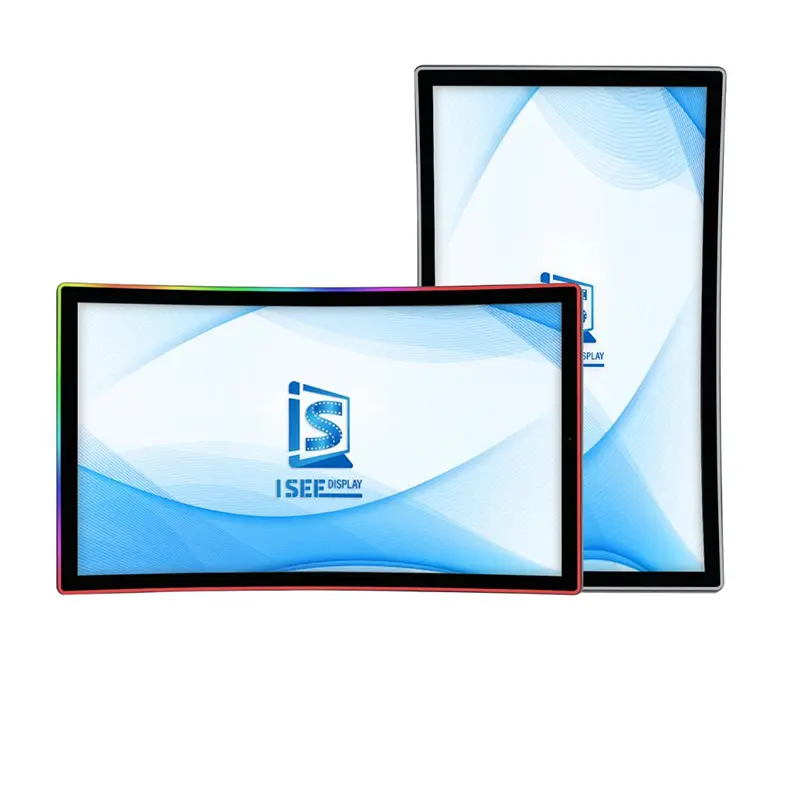

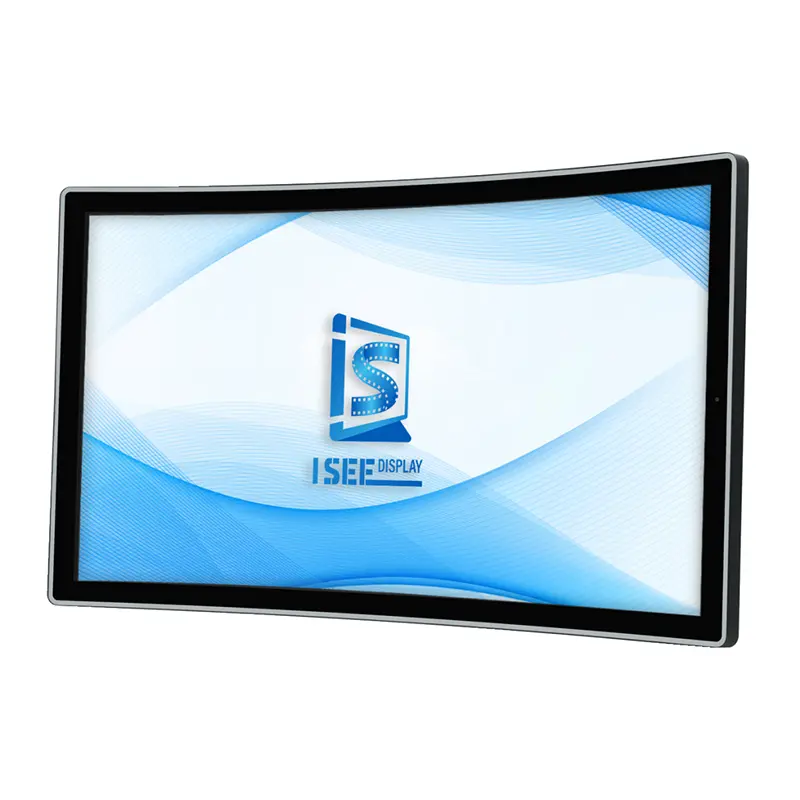

ISOT238-CLTR 23.8" C-Type Curved Touch Screen Monitor
ISEE DISPLAY’s ISOT238-CLTR is a premium curved touchscreen display designed to deliver an exceptional visual experience. Featuring a 1500R golden curvature and a unique C-shape design, it ensures immersive viewing in gaming, retail, and entertainment environments. The display integrates advanced PCAP multi-touch technology with LED strip lighting, enhancing interactivity and engagement. Built with industrial-grade IP65 and IK-07 ratings, it guarantees durability in demanding settings. Offering 2K/4K high resolution and broad system compatibility, the ISOT238-CLTR can be customized in appearance and interface to meet specific needs. Easy to install and mount, it combines performance with effortless integration.
Key Features
1. Curved shape with 1500R golden curvature for immersive visuals.
2. Integrated LED Strip Light for enhanced interactivity.
3. Industrial-grade IP65 and IK-07 protection for reliability.
4. 2K/4K high resolution for sharp and clear display.
5. Compatible with various systems for flexible use.
6. Customizable appearance and interface for tailored solutions.
7. Simple to install and mount, ensuring ease of use.
Parameter
Roduct Name |
23.8" Curved Monitor |
Model |
ISOT238-CLTR |
Display Technology |
Active Matrix TFT-LCD with LED Backlight |
Active Display Area |
527.04mm(H)×296.46mm(V) |
Diagonal |
23.8" |
Aspect Ratio |
16:9 |
Dimensions |
Outline dimension: 574.2mm x 346..1mm x 43.4mm For other dimensions, please refer to the engineering drawing |
Native Resolution |
1920(RGB)×1080, FHD |
Number of Colors |
16.7M, 72% NTSC |
Touch Technology |
PCAP (Projected Capacitive) - up to 10 touches |
Brightness (typical) |
LCD Panel: 250 nits; TouchPro PCAP: 210 nits |
Response (typical) |
10 msec |
Viewing Angle |
89/89/89/89 (Typ.)(CR≥10) |
Contrast Ratio |
4000:1 |
On-Screen Display |
Accessible through switches on the unit’s tethered OSD Control box. Controls: Menu, Up, Down, Select, Power Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color, Temperature, OSD Timeout OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Priority, Information, Touch On Sleep Mode, Touch Through Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese Lockouts: OSD, Power |
Video |
Analog VGA on Female DB-15 connector DVI-D digital signal, supporting single link and double link HDMI V1.3 Type A receptacle for HDMI input Input Video Horizontal Sync frequency range: 30 – 82KHz Input Video Vertical Sync (frame rate) frequency range: 50-75Hz |
Power |
External DC - power adapter Monitor input power signal specifications: 12VDC +/- 5% Adapter output power connector: DC barrel plug (2.1mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 9.5mm (+/- 0.3mm) barrel length) ,Power adapter length 1.8m (+/- 0.1m) |
Power Consumption |
ON (monitor + power brick): 18.9W SLEEP (monitor + power brick): 1.5W OFF (monitor + power brick): 0.5W |
Temperature |
Operating: 0 °C to 50 °C (32 °F to 122 °F); Storage: -20 °C to 60 °C (-4 °F to 140 °F) |
Humidity |
Operating: 20% to 80%; Storage: 10% to 95% |
Dust and waterproof grade |
Front grade IP65 |
Impact resistance grade |
IK-07 |
Weight |
Unpackaged: 7.8 kg; Packaged: 8.65 kg |
Shipping Dimensions |
650mm x 160mm x 430mm(Single package: Length x Width x Height) |
Mounting Options |
75x75mm and 100x100mm and 200x100mm VESA mount for M4 screws |
Warranty |
1 year standard |
MTBF |
30,000 hours demonstrated |
Agency Approvals |
FCC, CE |
What’s in the Box |
HDMI Cable or VGA Cable optional, Touch USB Cable, Mount Brackets, Screws, Power adapter, Power Cable |
Production process
The ISEE Curved Monitor combines advanced technology and durability for professional and industrial use. Its 1500R curvature reduces eye strain, enhancing visual comfort for extended use. The dustproof and waterproof design ensures reliability in harsh environments. Featuring LED dynamic lighting, 10-point capacitive touch, and optional 2K/4K resolution, it offers exceptional performance for interactive displays and multimedia applications. With energy efficiency and long-lasting durability, the ISEE Curved Monitor is a versatile, cost-effective solution for businesses and creative professionals seeking high-quality display performance.
Characteristic craftsmanship

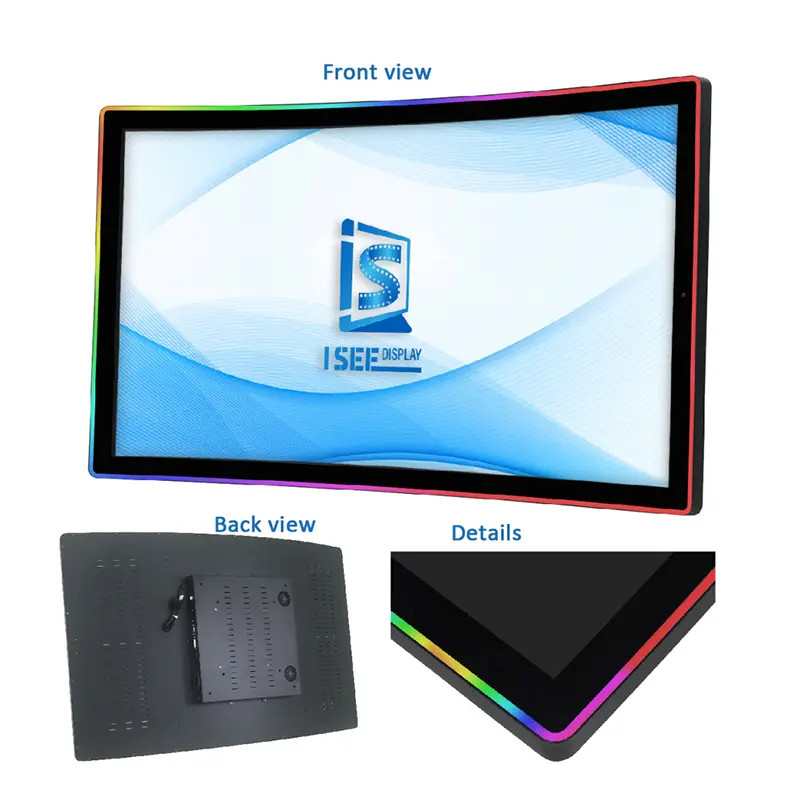

ISEE Curved Screen with LED Strip Light Monitor
ISEE presents the Curved Screen and LED Strip Light, a state-of-the-art display solution designed to deliver superior performance, exceptional aesthetics, and ergonomic comfort for both professional and personal use.
Dynamic Lighting & Customizable Design
The LED Strip Light enhances your viewing environment with its dynamic lighting effects. Choose from three elegant design options:
Embedded in the front border for seamless integration.
Embedded along the edge of the border for a refined look.
Acrylic surround front frame for a bold, sophisticated appearance.
These options offer flexible customization to suit your preferences, creating a unique atmosphere for any space.
Immersive Curved Screen Technology
The ISEE Curved Monitor features a 1500R curvature that minimizes visual distortion and enhances image depth, providing a more natural, comfortable viewing experience. This curvature, available in C-type, J-type, S-type, and U-type configurations, is designed to reduce eye strain and create a more immersive, stereoscopic display.
Effortless Installation & Full Compatibility
The ISEE Curved Monitor is engineered for easy installation, with a suspended mounting system for a sleek, modern appearance. It is fully compatible with VESA mount standards, offering seamless integration into a wide range of workspaces.
High quality
ISEE HD Display Monitor offers 2K/4K resolution with a 16:9/21:9 landscape or 9:16 portrait aspect ratio. Featuring a high refresh rate, it ensures clear, detailed visuals with every frame. Perfect for dynamic content, this monitor guarantees exceptional clarity and smooth performance in professional environments.
