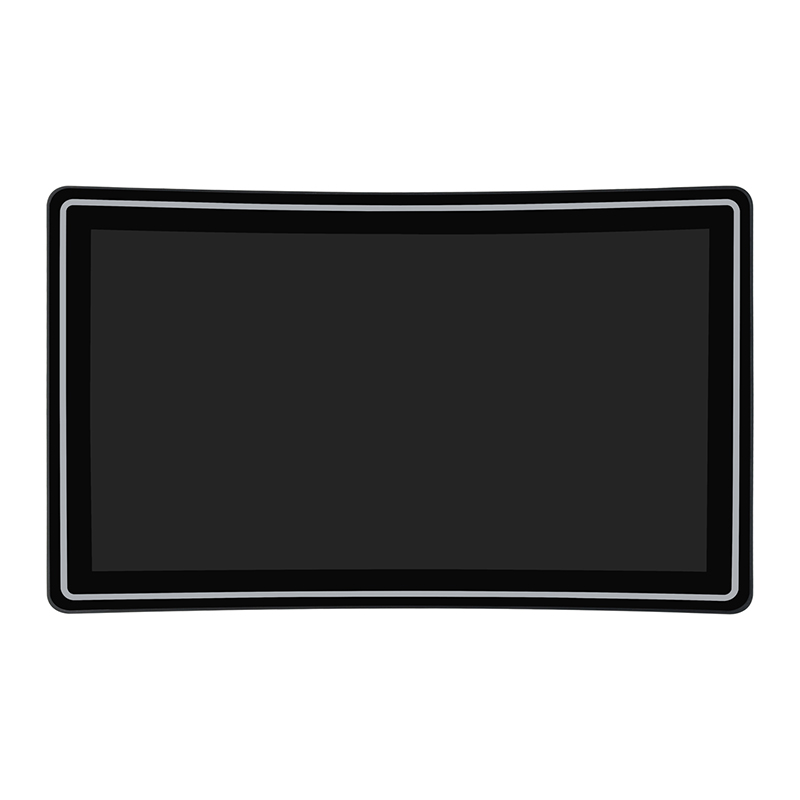

27inch Curved LCD touch Monitor

Display Specifications

Characteristic

Value

Comment

LCD Size/Type

27” a-Si TFT-LCD

Aspect Ratio

16:9

Active Area

Horizontal

596.86mm

Vertical

338.31mm

Panel Resolution

1920(RGB)×1080 (FHD)(60Hz)

Native

Display Color

16.7 Million

6-bits + Hi-FRC

Contrast Ratio

3000:1

Typical

Brightness

300 cd/m² (Typ.)

Typical

Response Time

7/5 (Typ.)(Tr/Td)

Typical

Viewing Angle

89/89/89/89 (Typ.)(CR≥10)

Typical

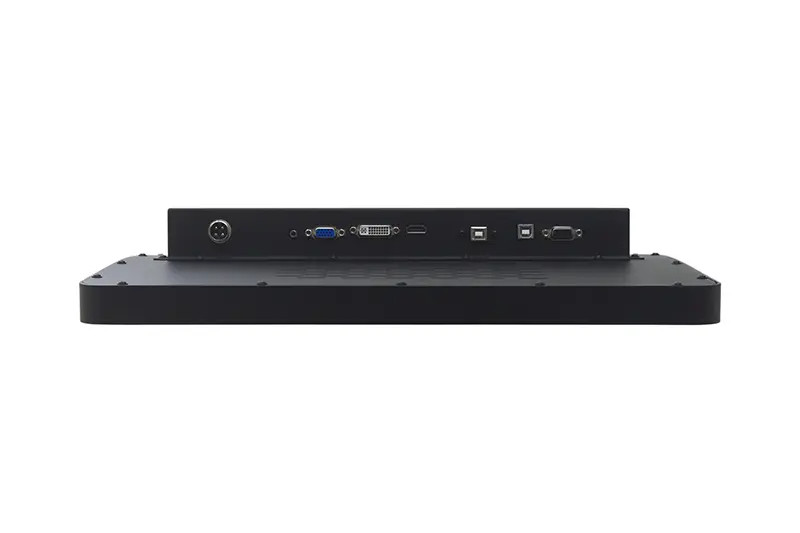

Video Signal Input

VGA ,HDMI, USB TOUCH , AC IN

Physical Specifications

Dimensions

Width

664.8 mm

Height

403.1 mm

Bezel width

43.935mm(with light bar)

Weight

Net Weight 10 kgs

Shipping Weight 12 kgs

Box Dimensions

Length

730 mm

Width

180 mm

Height

470 mm

Electrical Specifications

Power Supply

DC 12V 4A

Power Adapter Included

100-240 VAC, 50-60 Hz

Plug Input

Power Consumption

Operating

38 W

Typical

Power consumption

with LED light =115W ,without LED light =90-95w

Sleep

3 W

Off

1 W

Touch Screen Specifications

Touch Technology

Project Capacitive Touch Screen 10 Touch Point

Touch out put jack

USB (HID) ,3M USB TOUCH(optional) ,3M DB9 (UART) TOUCH(optional)

3M (touch adjust)

touch adjust  ,X MIROR,Y MIROR, x-y  exchange

Glass

3mm tempered glass

OS Supported

Plug and Play

Windows All (HID) ,Linux (HID) (Android Option)

Driver

Driver Offered

Environmental Specifications

Condition

Specification

Speaker

NO

LED lightbar (Optional)

FULL COLOR (optional)

Standby power consumption

<1W

Temperature

Operating

-10°C ~+ 50°C

Storage

-20°C ~ +70°C

Humidity

Operating

20% ~ 80%

Storage

10% ~ 90%

MTBF

30000 Hrs at 25°C
